Diffraction project datasets IDP90570_4ehi
- Method: SAD
- Resolution: 2.28 Å
- Space group: P 21 21 21
PDB website for 4EHI
PDB validation report for 4EHI
doi:10.18430/m34ehi
Project details

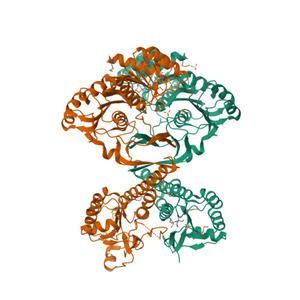

| Title | An X-ray Crystal Structure of a putative Bifunctional Phosphoribosylaminoimidazolecarboxamide Formyltransferase/IMP Cyclohydrolase |
| Authors | Brunzelle, J.S., Wawrzak, Z., Onopriyenko, O., Kwok, J., Anderson, W.F., Savchenko, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.21 |
| Unit cell edges [Å] | 93.88 x 101.23 x 114.29 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset idp90570-n2_A.### details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 50.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2010-02-12 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
Dataset idp90570-n2_B.### details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 230.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2010-02-12 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
