Diffraction project datasets IDP90557_3u09
- Method: Molecular Replacement
- Resolution: 1.75 Å
- Space group: P 62
PDB website for 3U09
PDB validation report for 3U09
doi:10.18430/m33g6z
Project details

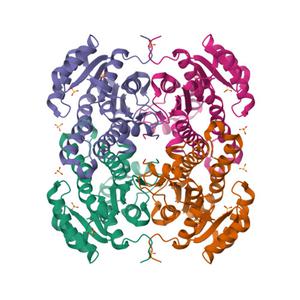

| Title | Crystal structure of 3-ketoacyl-(acyl-carrier-protein) reductase (FabG)(G92D) from Vibrio cholerae |
| Authors | Hou, J., Chruszcz, M., Zheng, H., Grabowski, M., Fratczak, Z., Anderson, W.F., Minor, W., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.16 / 0.19 |
| Unit cell edges [Å] | 63.57 x 63.57 x 191.06 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |
Dataset IDP90557_J-20-6_1_####.img details
| Number of frames | 419 (1 - 419) |
| Distance [mm] | 160.0 |
| Oscillation width [°] | 0.25 |
| Omega [°] | -50.0 |
| Kappa / Chi [°] | 0.0002 |
| Phi [°] | -0.0002 |
| Wavelength [Å] | 1.03070 |
| Experiment Date | 2011-07-06 |
| Equipment | 19-BM at APS (Advanced Photon Source) |
