Diffraction project datasets IDP90555_3tzl
- Method: SAD
- Resolution: 2.154 Å
- Space group: P 1 21 1
PDB website for 3TZL
PDB validation report for 3TZL
doi:10.18430/m33tzl
Project details

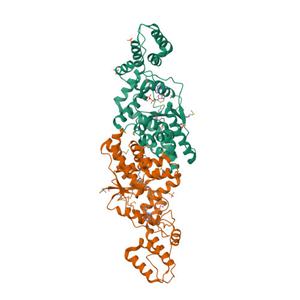

| Title | Crystal Structure of Tryptophanyl-tRNA Synthetase from Campylobacter jejuni complexed with ADP and Tryptophane |
| Authors | Kim, Y., Zhou, M., Grimshaw, S., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.18 / 0.22 |
| Unit cell edges [Å] | 66.78 x 50.63 x 105.92 |
| Unit cell angles [°] | 90.0, 107.0, 90.0 |
Dataset 1619b7c2-peak.####.img details
| Number of frames | 220 (1 - 220) |
| Distance [mm] | 220.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -110.0 |
| Kappa / Chi [°] | 0.0003 |
| Phi [°] | -0.0009 |
| Wavelength [Å] | 0.97910 |
| Experiment Date | 2010-03-04 |
| Equipment | 19-BM at APS (Advanced Photon Source) |
