Diffraction project datasets IDP90555_3m5w
- Method: SAD
- Resolution: 2.32 Å
- Space group: P 1 21 1
PDB website for 3M5W
PDB validation report for 3M5W
doi:10.18430/m33m5w
Project details

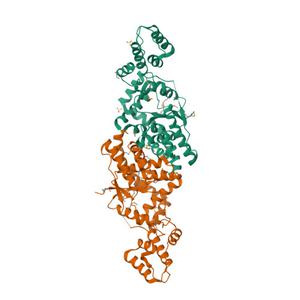

| Title | Crystal Structure of Tryptophanyl-tRNA Synthetase from Campylobacter jejuni |
| Authors | Kim, Y., Zhou, M., Hasseman, J., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.18 / 0.24 |
| Unit cell edges [Å] | 66.15 x 50.60 x 108.64 |
| Unit cell angles [°] | 90.0, 107.6, 90.0 |
Dataset if7g-peak.####.img details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 360.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -120.0 |
| Kappa / Chi [°] | -0.0001 |
| Phi [°] | -0.007 |
| Wavelength [Å] | 0.97937 |
| Experiment Date | 2010-02-13 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
Dataset if7g-peak2.####.img details
| Number of frames | 40 (1 - 40) |
| Distance [mm] | 360.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | 80.0 |
| Phi [°] | -0.007 |
| Wavelength [Å] | 0.97937 |
| Experiment Date | 2010-02-13 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
