Diffraction project datasets IDP90544_5hi6
- Resolution: 2.051 Å
- Space group: P 21 21 21
PDB website for 5HI6
PDB validation report for 5HI6
doi:10.18430/m35hi6
Project details

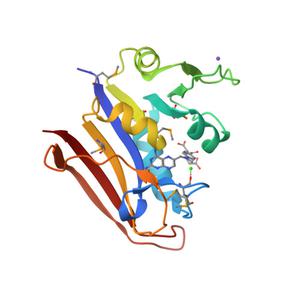

| Title | The high resolution structure of dihydrofolate reductase from Yersinia pestis complex with methotrexate as closed form |
| Authors | Chang, C., Maltseva, N., Kim, Y., Makowska-Grzyska, M., Mulligan, R., Papazisi, L., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.22 |
| Unit cell edges [Å] | 44.15 x 60.62 x 109.94 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset MEMMCSG4F9eg-peak.####.img details
| Number of frames | 200 (1 - 200) |
| Distance [mm] | 320.1 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -100.0 |
| Kappa / Chi [°] | 0.0003 |
| Phi [°] | -0.0037 |
| Wavelength [Å] | 0.97912 |
| Experiment Date | 2010-12-09 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
