Diffraction project datasets IDP90544_5fda
- Resolution: 1.549 Å
- Space group: C 2 2 21
PDB website for 5FDA
PDB validation report for 5FDA
doi:10.18430/m35fda
Project details

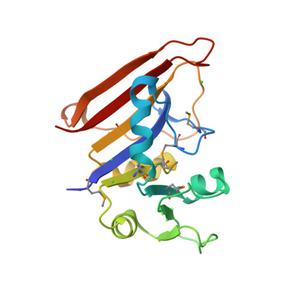

| Title | The high resolution structure of apo form dihydrofolate reductase from Yersinia pestis at 1.55 A |
| Authors | Chang, C., Maltseva, N., Kim, Y., Makowska-Grzyska, M., Mulligan, R., Papazisi, L., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.16 / 0.19 |
| Unit cell edges [Å] | 60.27 x 79.20 x 64.32 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset DHFINDA8sucr.####.img details
| Number of frames | 195 (1 - 195) |
| Distance [mm] | 230.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -110.0 |
| Kappa / Chi [°] | 0.0003 |
| Phi [°] | -0.0037 |
| Wavelength [Å] | 0.97912 |
| Experiment Date | 2010-12-09 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
