Diffraction project datasets IDP90540_3tha
- Method: SAD
- Resolution: 2.37 Å
- Space group: P 31 2 1
PDB website for 3THA
PDB validation report for 3THA
doi:10.18430/m33tha
Project details

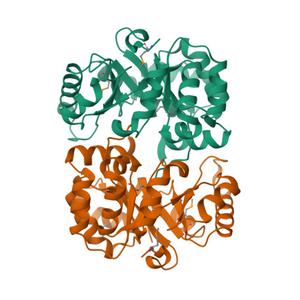

| Title | Tryptophan synthase subunit alpha from Campylobacter jejuni. |
| Authors | Osipiuk, J., Gu, M., Kwon, K., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.22 / 0.26 |
| Unit cell edges [Å] | 91.97 x 91.97 x 120.02 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |
Dataset idp90540_3THA.####.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 361.6 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -90.0 |
| Kappa / Chi [°] | 0.0003 |
| Phi [°] | -0.0108 |
| Wavelength [Å] | 0.97934 |
| Experiment Date | 2011-07-10 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
