Diffraction project datasets IDP90286_4IR8
- Method: Molecular Replacement
- Resolution: 1.85 Å
- Space group: P 65 2 2
PDB website for 4IR8
doi:10.18430/m34ir8
Project details

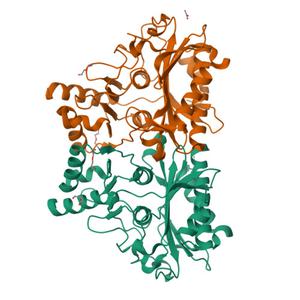

| Title | 1.85 Angstrom Crystal Structure of Putative Sedoheptulose-1,7 bisphosphatase from Toxoplasma gondii |
| Authors | Minasov, G., Ruan, J., Wawrzak, Z., Halavaty, A., Shuvalova, L., Harb, O.S., Ngo, H., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.15 / 0.19 |
| Unit cell edges [Å] | 64.40 x 64.40 x 591.61 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

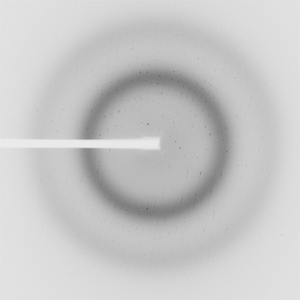

Dataset idp90286a.### details
| Number of frames | 250 (1 - 250) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 32.0 |
| Wavelength [Å] | 0.97903 |
| Experiment Date | 2011-10-06 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
Dataset idp90286a-2.### details
| Number of frames | 250 (1 - 250) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 32.0 |
| Wavelength [Å] | 0.97903 |
| Experiment Date | 2011-10-06 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
