Diffraction project datasets IDP90246_3t6m
- Resolution: 1.65 Å
- Space group: P 32 2 1
PDB website for 3T6M
PDB validation report for 3T6M
doi:10.18430/m33t6m
Project details

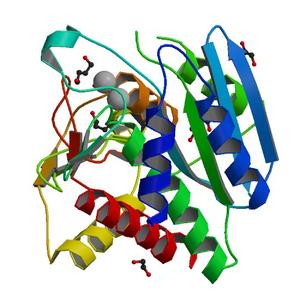

| Title | Crystal structure of the catalytic domain of DapE protein from V.cholerea in the Zn bound form |
| Authors | 'B.Nocek,M.Makowska-Grzyska,R.Jedrzejczak,W.F.Anderson,A.Joachimiak,Center For Structural Genomics Of Infectious Diseases (Csgid)' |
| R / Rfree | 0.16 / 0.18 |
| Unit cell edges [Å] | 49.86 x 49.86 x 231.76 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |
Dataset Vc-wiz-c11-x2.####.img details
| Number of frames | 179 (1 - 179) |
| Distance [mm] | 292.2 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -95.0 |
| Kappa / Chi [°] | 0.0003 |
| Phi [°] | -0.0037 |
| Wavelength [Å] | 0.97921 |
| Experiment Date | 2011-04-07 |
