Diffraction project datasets IDP51000_6w01
- Resolution: 1.9 Å
- Space group: P 63
PDB website for 6W01
PDB validation report for 6W01
doi:10.18430/m36w01
Project details

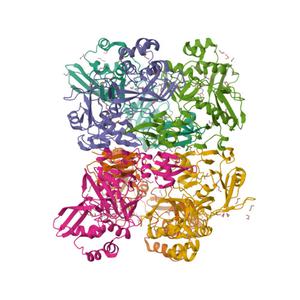

| Title | The 1.9 A Crystal Structure of NSP15 Endoribonuclease from SARS CoV-2 in the Complex with a Citrate |
| Authors | Kim, Y., Jedrzejczak, R., Maltseva, N., Endres, M., Godzik, A., Michalska, K., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.16 / 0.18 |
| Unit cell edges [Å] | 150.78 x 150.78 x 111.68 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

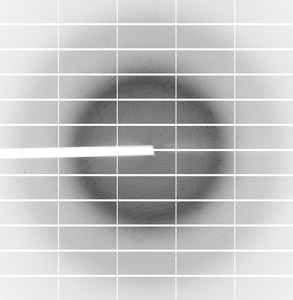

Dataset Nsp15_M4_G4_RNA_eg_data2_#####.cbf details
| Number of frames | 130 (1 - 130) |
| Distance [mm] | 349.9 |
| Oscillation width [°] | 0.50 |
| Wavelength [Å] | 0.97918 |
| Experiment Date | 2020-02-25 |
| Equipment | 19-ID at APS (Advanced Photon Source) |

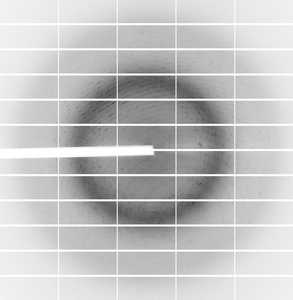

Dataset Nsp15_M4_G4_RNA_eg_data_#####.cbf details
| Number of frames | 52 (1 - 52) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 0.50 |
| Wavelength [Å] | 0.97918 |
| Experiment Date | 2020-02-25 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
