Diffraction project datasets IDP51000_6W4H
- Resolution: 1.8 Å
- Space group: P 31 2 1
PDB website for 6W4H
PDB validation report for 6W4H
doi:10.18430/m36w4h
Project details

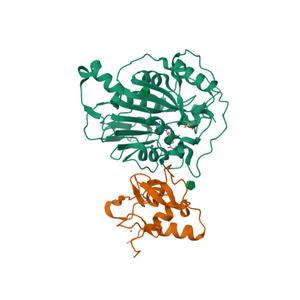

| Title | 1.80 Angstrom Resolution Crystal Structure of NSP16 - NSP10 Complex from SARS-CoV-2 |
| Authors | Minasov, G., Shuvalova, L., Rosas-Lemus, M., Kiryukhina, O., Wiersum, G., Godzik, A., Jaroszewski, L., Stogios, P.J., Skarina, T., Satchell, K.J.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.15 / 0.16 |
| Unit cell edges [Å] | 167.74 x 167.74 x 51.94 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

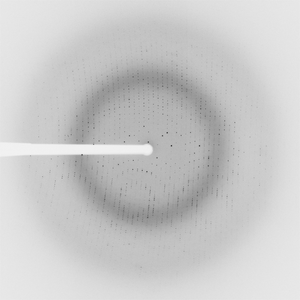

Dataset idp51000-201-a_1_2_3.### details
| Number of frames | 200 (1 - 200) |
| Distance [mm] | 240.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 40.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2020-03-07 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
