Diffraction project datasets IDP07716_5VH6
- Resolution: 2.61 Å
- Space group: P 43 21 2
Uniprot website for P80868
PDB website for 5VH6
PDB validation report for 5VH6
doi:10.18430/m35vh6
Project details

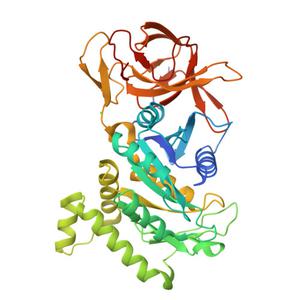

| Title | 2.6 Angstrom Resolution Crystal Structure of N-terminal Fragment (residues 1-406) of Elongation Factor G from Bacillus subtilis. |
| Authors | Minasov, G., Shuvalova, L., Dubrovska, I., Kiryukhina, O., Grimshaw, S., Kwon, K., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.23 / 0.28 |
| Unit cell edges [Å] | 56.67 x 56.67 x 248.72 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

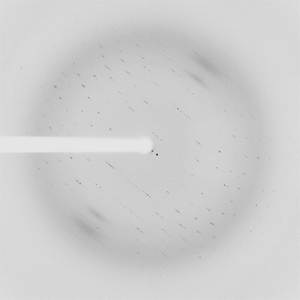

Dataset idp07716-1-cut-a_1_1_5.### details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 370.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | -60.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2017-03-28 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
