Diffraction project datasets IDP07597_6N7F
- Resolution: 1.9 Å
- Space group: P 1
Uniprot website for Q9A0E2
PDB website for 6N7F
PDB validation report for 6N7F
doi:10.18430/m36n7f
Project details
| Title | 1.90 Angstrom Resolution Crystal Structure of Glutathione Reductase from Streptococcus pyogenes in Complex with FAD. |
| Authors | Minasov, G., Shuvalova, L., Shabalin, I.G., Grabowski, M., Olphie, A., Cardona-Correa, A., Anderson, W.F., Satchell, K.J.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.21 |
| Unit cell edges [Å] | 76.40 x 86.65 x 86.67 |
| Unit cell angles [°] | 67.1, 74.2, 74.1 |

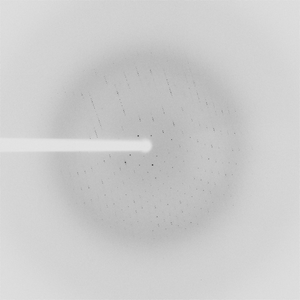

Dataset IDP07336-a_1_1_6.### details
| Number of frames | 34 (22 - 55) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 251.8 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2017-04-20 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
Dataset IDP07336-a_1_1_6.### details
| Number of frames | 21 (127 - 147) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 251.8 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2017-04-20 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
Dataset IDP07336-a_1_1_6.### details
| Number of frames | 26 (226 - 251) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 251.8 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2017-04-20 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
Dataset IDP07336-a_1_1_6.### details
| Number of frames | 22 (329 - 350) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 251.8 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2017-04-20 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |

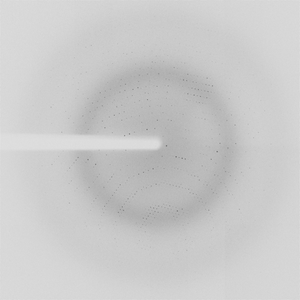

Dataset idp07597cut-FAD-a_2_1_4.### details
| Number of frames | 24 (30 - 53) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 111.6 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2017-06-20 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
Dataset idp07597cut-FAD-a_2_1_4.### details
| Number of frames | 27 (89 - 115) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 111.6 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2017-06-20 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
Dataset idp07597cut-FAD-a_2_1_4.### details
| Number of frames | 23 (162 - 184) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 111.6 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2017-06-20 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
Dataset idp07597cut-FAD-a_2_1_4.### details
| Number of frames | 29 (186 - 214) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 111.6 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2017-06-20 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
Dataset idp07597cut-FAD-a_2_1_4.### details
| Number of frames | 25 (287 - 311) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 111.6 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2017-06-20 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
