Diffraction project datasets IDP07540_5TR3
- Resolution: 2.5 Å
- Space group: P 21 21 21
Uniprot website for Q88FB1
PDB website for 5TR3
PDB validation report for 5TR3
doi:10.18430/m35tr3
Project details
| Title | 2.5 Angstrom Resolution Crystal Structure of Dihydrolipoyl Dehydrogenase from Pseudomonas putida in Complex with FAD. |
| Authors | Minasov, G., Wawrzak, Z., Shuvalova, L., Kiryukhina, O., Dubrovska, I., Grimshaw, S., Kwon, K., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.23 / 0.26 |
| Unit cell edges [Å] | 56.89 x 132.11 x 158.13 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

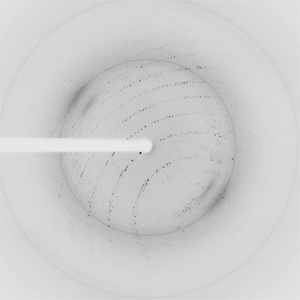

Dataset idp07540cut-a_1_1_5.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 320.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 50.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2016-10-05 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
