Diffraction project datasets IDP07285_6BQ9
- Resolution: 2.55 Å
- Space group: C 2 2 21
Uniprot website for Q88DB5
PDB website for 6BQ9
PDB validation report for 6BQ9
doi:10.18430/m36bq9
Project details
| Title | 2.55 Angstrom Resolution Crystal Structure of N-terminal Fragment (residues 1-493) of DNA Topoisomerase IV Subunit A from Pseudomonas putida |
| Authors | Minasov, G., Shuvalova, L., Dubrovska, I., Kiryukhina, O., Grimshaw, S., Kwon, K., Anderson, W.F., Satchell, K.J.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.21 / 0.25 |
| Unit cell edges [Å] | 71.49 x 224.06 x 115.75 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

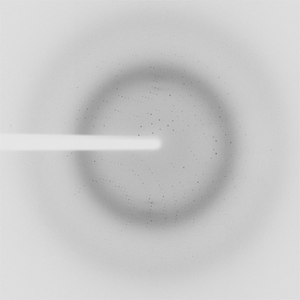

Dataset idp07228-cut-a_2_2_4.### details
| Number of frames | 250 (1 - 250) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 35.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2017-06-20 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |

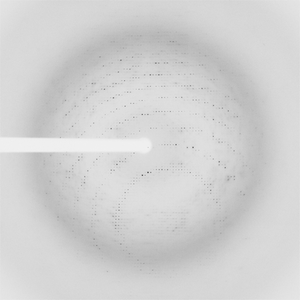

Dataset idp07285cut-a_1_1_3.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 330.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 90.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2017-10-17 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
