Diffraction project datasets IDP07222_5utx
- Resolution: 2.46 Å
- Space group: P 31 2 1
Uniprot website for Q7MLH2
PDB website for 5UTX
PDB validation report for 5UTX
doi:10.18430/m35utx
Project details
| Title | Crystal structure of thioredoxin-disulfide reductase from Vibrio vulnificus CMCP6 - apo form |
| Authors | Chang, C., Grimshaw, S., Maltseva, N., Mulligan, R., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.20 / 0.25 |
| Unit cell edges [Å] | 120.03 x 120.03 x 79.19 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

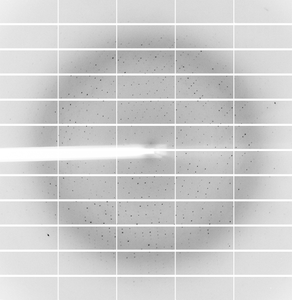

Dataset 98_#####.cbf details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 517.2 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -89.9998 |
| Wavelength [Å] | 0.97857 |
| Experiment Date | 2016-11-30 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
