Diffraction project datasets IDP07222_5usx
- Resolution: 2.603 Å
- Space group: P 21 21 21
Uniprot website for Q7MLH2
PDB website for 5USX
PDB validation report for 5USX
doi:10.18430/m35usx
Project details

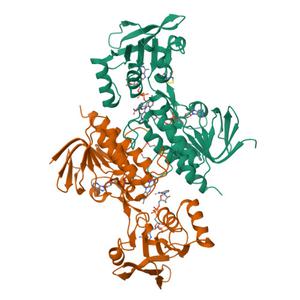

| Title | Crystal structure of thioredoxin-disulfide reductase from Vibrio vulnificus CMCP6 in complex with NADP and FAD |
| Authors | Chang, C., Grimshaw, S., Maltseva, N., Mulligan, R., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.19 / 0.23 |
| Unit cell edges [Å] | 64.63 x 98.30 x 119.88 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

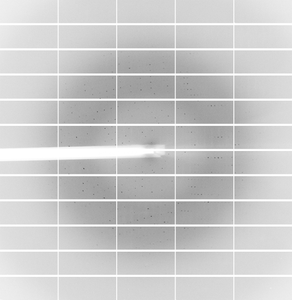

Dataset 67_#####.cbf details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 470.4 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -89.9999 |
| Wavelength [Å] | 0.97857 |
| Experiment Date | 2016-11-30 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
