Diffraction project datasets IDP07216_6dfu
- Resolution: 2.05 Å
- Space group: P 1 21 1
PDB website for 6DFU
PDB validation report for 6DFU
doi:10.18430/m36dfu
Project details

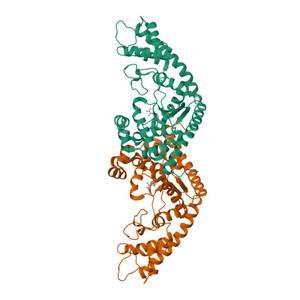

| Title | Tryptophan--tRNA ligase from Haemophilus influenzae. |
| Authors | Osipiuk, J., Maltseva, N., Mulligan, R., Grimshaw, S., Satchell, K.J.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.19 / 0.24 |
| Unit cell edges [Å] | 70.29 x 48.68 x 99.32 |
| Unit cell angles [°] | 90.0, 101.1, 90.0 |

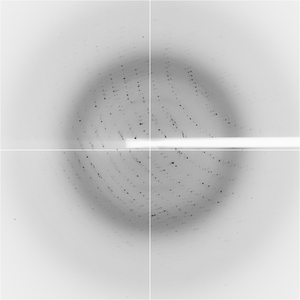

Dataset u7_06.####.img details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 194.7 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -120.0 |
| Phi [°] | -0.0035 |
| Wavelength [Å] | 0.97912 |
| Experiment Date | 2017-07-13 |
| Equipment | 19-BM at APS (Advanced Photon Source) |
Dataset u7_06.####.img details
| Number of frames | 53 (601 - 653) |
| Distance [mm] | 194.7 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -120.0 |
| Phi [°] | -0.0035 |
| Wavelength [Å] | 0.97912 |
| Experiment Date | 2017-07-13 |
| Equipment | 19-BM at APS (Advanced Photon Source) |
