Diffraction project datasets IDP07215_6CN1
- Resolution: 2.75 Å
- Space group: P 21 21 21
Uniprot website for Q88P88
PDB website for 6CN1
PDB validation report for 6CN1
doi:10.18430/m36cn1
Project details

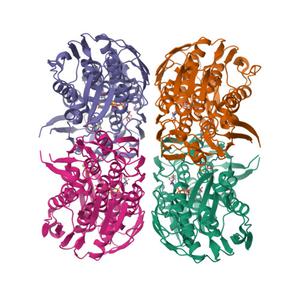

| Title | 2.75 Angstrom Resolution Crystal Structure of UDP-N-acetylglucosamine 1-carboxyvinyltransferase from Pseudomonas putida in Complex with Uridine-diphosphate-2(n-acetylglucosaminyl) butyric acid, (2R)-2-(phosphonooxy)propanoic acid and Magnesium |
| Authors | Minasov, G., Shuvalova, L., Dubrovska, I., Cardona-Correa, A., Grimshaw, S., Kwon, K., Anderson, W.F., Satchell, K.J.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.21 / 0.25 |
| Unit cell edges [Å] | 128.62 x 148.12 x 164.63 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

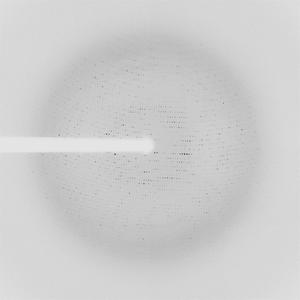

Dataset idp07215cut-b_2_1_2.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 110.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2017-06-22 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
