Diffraction project datasets IDP07211_5U47
- Resolution: 1.95 Å
- Space group: P 21 21 21
Uniprot website for Q5M2U8
PDB website for 5U47
PDB validation report for 5U47
doi:10.18430/m35u47
Project details

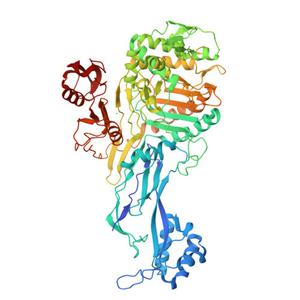

| Title | 1.95 Angstrom Resolution Crystal Structure of Penicillin Binding Protein 2X from Streptococcus thermophilus |
| Authors | Minasov, G., Shuvalova, L., Cardona-Correa, A., Dubrovska, I., Grimshaw, S., Kwon, K., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.21 |
| Unit cell edges [Å] | 53.54 x 78.49 x 164.86 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

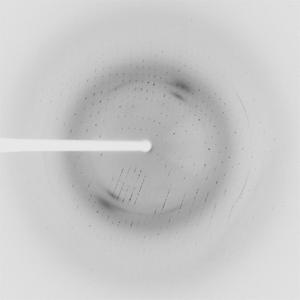

Dataset idp07211-1cut-b_1_1_4.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 260.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 120.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2016-11-30 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
