Diffraction project datasets IDP07182_6AON
- Resolution: 1.72 Å
- Space group: P 41
Uniprot website for Q7VZ16
PDB website for 6AON
PDB validation report for 6AON
doi:10.18430/m36aon
Project details

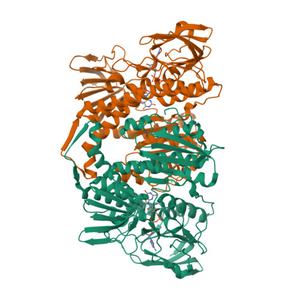

| Title | 1.72 Angstrom Resolution Crystal Structure of 2-Oxoglutarate Dehydrogenase Complex Subunit Dihydrolipoamide Dehydrogenase from Bordetella pertussis in Complex with FAD |
| Authors | Minasov, G., Wawrzak, Z., Skarina, T., McChesney, C., Grimshaw, S., Savchenko, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.21 |
| Unit cell edges [Å] | 68.80 x 68.80 x 199.40 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

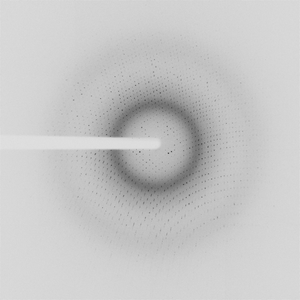

Dataset IDP07182-1_1_1_1.### details
| Number of frames | 375 (1 - 375) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.40 |
| Phi [°] | 50.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2017-06-22 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
