Diffraction project datasets IDP06313_4r01

  • Method: Molecular Replacement
  • Resolution: 2.4 Å
  • Space group: C 1 2 1
Download all images (1.6 GB)

PDB website for 4R01

doi:10.18430/M34R01

Project details

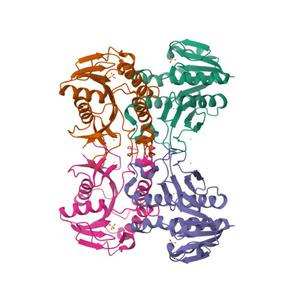

Title Crystal structure of SP1627, a putative NADH-flavin reductase, from Streptococcus pneumoniae TIGR4
Authors Stogios, P.J., Onopriyenko, O., Savchenko, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID)
R / Rfree 0.19 / 0.24
Unit cell edges [Å] 160.03 x 82.96 x 43.79
Unit cell angles [°] 90.0, 105.6, 90.0

Dataset IDP06315_SP1631_collect_Wallberg_June10_2014_####.osc details

Number of frames 272 (1 - 272)
Distance [mm] 140.0
Oscillation width [°] 0.50
Wavelength [Å] 1.54178
Experiment Date 2014-06-10
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
