Diffraction project datasets IDP05722_5usc
- Resolution: 2.2 Å
- Space group: P 21 21 2
PDB website for 5USC
PDB validation report for 5USC
doi:10.18430/m35usc
Project details

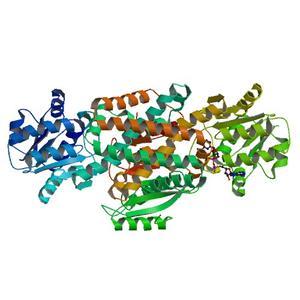

| Title | Crystal structure of prephenate dehydrogenase tyrA from Bacillus anthracis in complex with NAD and L-tyrosine |
| Authors | Shabalin, I.G., Hou, J., Kutner, J., Grimshaw, S., Christendat, D., Anderson, W.F., Minor, W., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.19 / 0.24 |
| Unit cell edges [Å] | 106.86 x 81.00 x 83.57 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

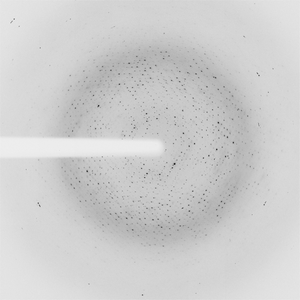

Dataset B1_set.### details
| Number of frames | 220 (1 - 220) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -120.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2015-04-17 |
