Diffraction project datasets IDP05684_3tng
- Resolution: 2.16 Å
- Space group: P 41 21 2
PDB website for 3TNG
doi:10.18430/M33TNG
Project details

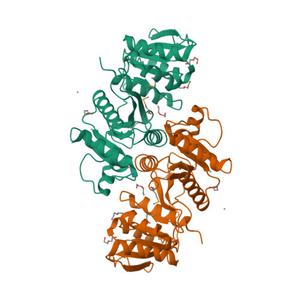

| Title | The crystal structure of a possible phosphate acetyl/butaryl transferase from Listeria monocytogenes EGD-e. |
| Authors | Tan, K., Zhou, M., Kwon, K., Anderson, W.F., Joachimiak, A. |
| R / Rfree | 0.20 / 0.24 |
| Unit cell edges [Å] | 66.49 x 66.49 x 125.13 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset IDP05684Mod3_PKa.####.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 292.2 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -110.0 |
| Kappa / Chi [°] | -0.0002 |
| Phi [°] | -0.0248 |
| Wavelength [Å] | 0.97926 |
| Experiment Date | 2011-06-29 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
