Diffraction project datasets IDP05677_4eae
- Resolution: 1.32 Å
- Space group: P 61
PDB website for 4EAE
PDB validation report for 4EAE
doi:10.18430/m34eae
Project details

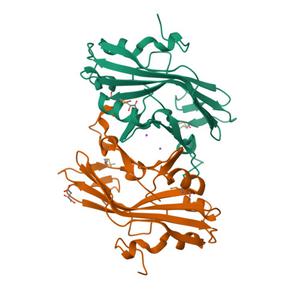

| Title | The crystal structure of a functionally unknown protein from Listeria monocytogenes EGD-e |
| Authors | Tan, K., Zhou, M., Kwon, K., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.16 / 0.18 |
| Unit cell edges [Å] | 87.96 x 87.96 x 94.63 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |
Dataset IDP05677_3_PKa.####.img details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 161.8 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -160.0 |
| Kappa / Chi [°] | -0.0003 |
| Phi [°] | -0.0176 |
| Wavelength [Å] | 0.97901 |
| Experiment Date | 2012-03-09 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
