Diffraction project datasets IDP05600_6npo
- Resolution: 2.4 Å
- Space group: P 1 21 1
Uniprot website for Q81YA8
PDB website for 6NPO
PDB validation report for 6NPO
doi:10.18430/m36npo
Project details

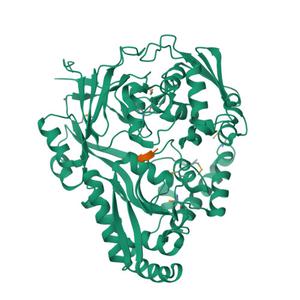

| Title | Crystal structure of oligopeptide ABC transporter from Bacillus anthracis str. Ames (substrate-binding domain) |
| Authors | Michalska, K., Maltseva, N., Endres, M., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.19 / 0.25 |
| Unit cell edges [Å] | 56.54 x 54.90 x 82.92 |
| Unit cell angles [°] | 90.0, 106.2, 90.0 |

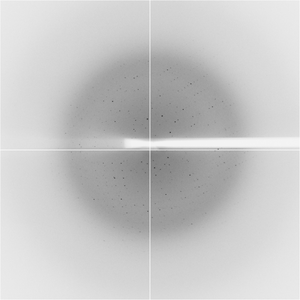

Dataset IDP5600_IND_D3_d3_gol_data.####.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 200.1 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -90.0 |
| Wavelength [Å] | 0.97919 |
| Experiment Date | 2018-03-21 |
| Equipment | 19-BM at APS (Advanced Photon Source) |
Dataset IDP5600_IND_D3_d3_gol_data_2.####.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 200.1 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -90.0 |
| Wavelength [Å] | 0.97919 |
| Experiment Date | 2018-03-21 |
| Equipment | 19-BM at APS (Advanced Photon Source) |

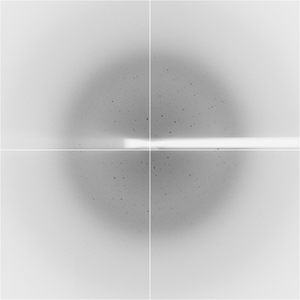

Dataset IDP5600_IND_D3_d3_gol_data_3.####.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 200.1 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -90.0 |
| Wavelength [Å] | 0.97919 |
| Experiment Date | 2018-03-21 |
| Equipment | 19-BM at APS (Advanced Photon Source) |
