Diffraction project datasets IDP05301_3o04
- Method: SAD
- Resolution: 1.85 Å
- Space group: P 43 21 2
PDB website for 3O04
PDB validation report for 3O04
doi:10.18430/m33o04
Project details

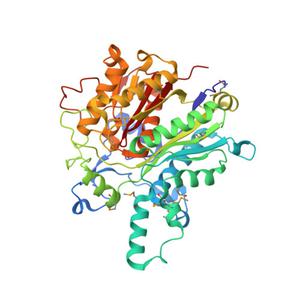

| Title | Crystal structure of the beta-keto-acyl carrier protein synthase II (lmo2201) from Listeria monocytogenes |
| Authors | Anderson, S.M., Wawrzak, Z., Onopriyenko, O., Anderson, W.F., Savchenko, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.15 / 0.18 |
| Unit cell edges [Å] | 74.74 x 74.74 x 170.69 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset LMO3000-N1_A.### details
| Number of frames | 110 (1 - 110) |
| Distance [mm] | 160.0 |
| Oscillation width [°] | 0.75 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2009-08-03 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
Dataset LMO3000-N1_B.### details
| Number of frames | 110 (1 - 110) |
| Distance [mm] | 160.0 |
| Oscillation width [°] | 0.75 |
| Phi [°] | 180.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2009-08-03 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
