Diffraction project datasets IDP05250_5I0D
Project details
| Title |

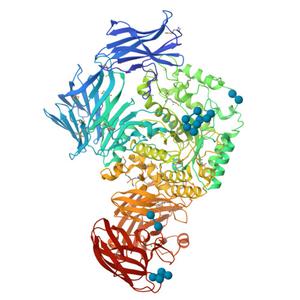

Cycloalternan-forming enzyme from Listeria monocytogenes in complex with cycloalternan |
| Authors |
Light, S.H., Minasov, G., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree |
0.14 / 0.17 |
| Unit cell edges [Å] |
74.75 x
101.23 x
166.39
|
| Unit cell angles [°] |
90.0,
101.0,
90.0
|

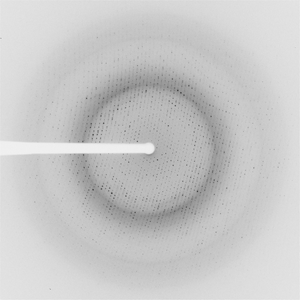

Dataset idp05250sm-j.### details
| Number of frames |
400 (1 - 400) |
| Distance [mm] |
180.0 |
| Oscillation width [°] |
0.50 |
| Wavelength [Å] |
0.97872 |
| Experiment Date |
2014-08-21 |
| Equipment |
21-ID-F
at APS (Advanced Photon Source)
|

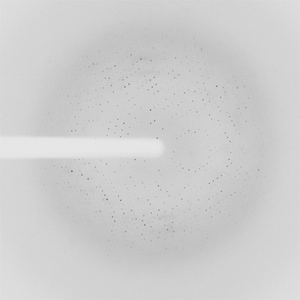

Dataset idp05616c.### details
| Number of frames |
31 (6 - 36) |
| Distance [mm] |
320.0 |
| Oscillation width [°] |
0.60 |
| Phi [°] |
148.2 |
| Wavelength [Å] |
0.97856 |
| Experiment Date |
2014-11-10 |
| Equipment |
21-ID-F
at APS (Advanced Photon Source)
|
Dataset idp05616c.### details
| Number of frames |
31 (41 - 71) |
| Distance [mm] |
320.0 |
| Oscillation width [°] |
0.60 |
| Phi [°] |
148.2 |
| Wavelength [Å] |
0.97856 |
| Experiment Date |
2014-11-10 |
| Equipment |
21-ID-F
at APS (Advanced Photon Source)
|
Dataset idp05616c.### details
| Number of frames |
21 (109 - 129) |
| Distance [mm] |
320.0 |
| Oscillation width [°] |
0.60 |
| Phi [°] |
148.2 |
| Wavelength [Å] |
0.97856 |
| Experiment Date |
2014-11-10 |
| Equipment |
21-ID-F
at APS (Advanced Photon Source)
|
Dataset idp05616c.### details
| Number of frames |
27 (148 - 174) |
| Distance [mm] |
320.0 |
| Oscillation width [°] |
0.60 |
| Phi [°] |
148.2 |
| Wavelength [Å] |
0.97856 |
| Experiment Date |
2014-11-10 |
| Equipment |
21-ID-F
at APS (Advanced Photon Source)
|
