Diffraction project datasets IDP05185_4RWR
- Resolution: 2.1 Å
- Space group: P 1 21 1
Uniprot website for Q81K14
PDB website for 4RWR
PDB validation report for 4RWR
doi:10.18430/m34rwr
Project details

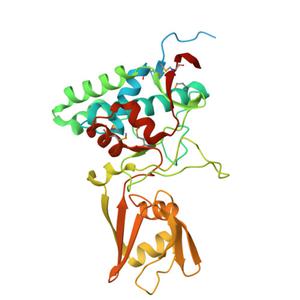

| Title | 2.1 Angstrom Crystal Structure of Stage II Sporulation Protein D from Bacillus anthracis |
| Authors | Minasov, G., Wawrzak, Z., Nocadello, S., Shuvalova, L., Dubrovska, I., Flores, K., Bagnoli, F., Falugi, F., Bottomley, M., Grandi, G., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.19 / 0.24 |
| Unit cell edges [Å] | 46.62 x 144.48 x 47.08 |
| Unit cell angles [°] | 90.0, 115.4, 90.0 |

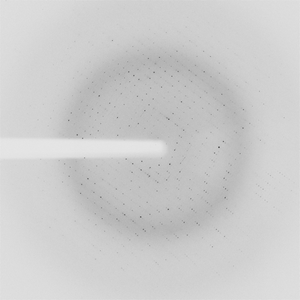

Dataset idp91712-91677-3-a_1_1_1.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 290.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 155.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2015-07-20 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
