Diffraction project datasets IDP05184_4fca
- Resolution: 2.055 Å
- Space group: P 21 21 2
PDB website for 4FCA
PDB validation report for 4FCA
doi:10.18430/m34fca
Project details

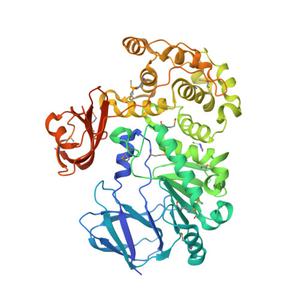

| Title | The crystal structure of a functionally unknown conserved protein from Bacillus anthracis str. Ames. |
| Authors | Tan, K., Zhou, M., Kwon, K., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.21 / 0.25 |
| Unit cell edges [Å] | 72.28 x 156.18 x 48.23 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset IDP5148_2_PKa.####.img details
| Number of frames | 150 (1 - 150) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -80.0 |
| Kappa / Chi [°] | -0.0003 |
| Phi [°] | -0.0176 |
| Wavelength [Å] | 0.97918 |
| Experiment Date | 2012-03-19 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
