Diffraction project datasets IDP05181_5U4O
- Resolution: 2.05 Å
- Space group: P 62 2 2
Uniprot website for Q81L97
PDB website for 5U4O
PDB validation report for 5U4O
doi:10.18430/m35u4o
Project details

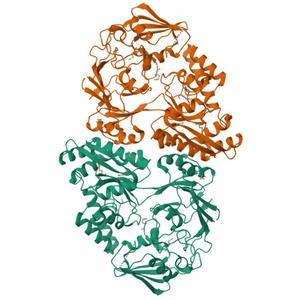

| Title | A 2.05A X-Ray Structureof A Bacterial Extracellular Solute-binding Protein, family 5 for Bacillus anthracis str. Ames |
| Authors | Brunzelle, J.S., Wawrzak, Z., Sandoval, J., Savchenko, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.18 / 0.20 |
| Unit cell edges [Å] | 101.70 x 101.70 x 220.42 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

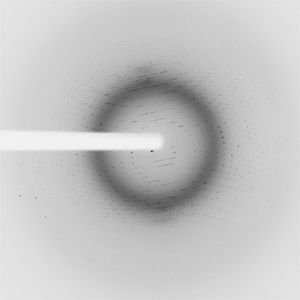

Dataset IDP05181-3.### details
| Number of frames | 70 (1 - 70) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 60.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2016-04-14 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
