Diffraction project datasets IDP05113_4egu
- Method: Molecular Replacement
- Resolution: 0.95 Å
- Space group: P 21 21 21
PDB website for 4EGU
PDB validation report for 4EGU
doi:10.18430/m34egu
Project details

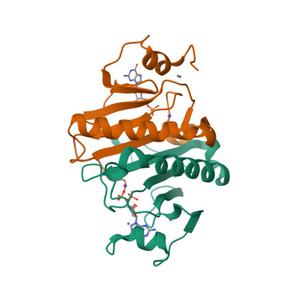

| Title | 0.95A Resolution Structure of a Histidine Triad Protein from Clostridium difficile |
| Authors | Anderson, S.M., Wawrzak, Z., Kudritska, M., Peterson, S.N., Anderson, W.F., Savchenko, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.14 / 0.15 |
| Unit cell edges [Å] | 38.07 x 65.85 x 89.04 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset IDP05113-2b.### details
| Number of frames | 186 (1 - 186) |
| Distance [mm] | 110.0 |
| Oscillation width [°] | 0.30 |
| Phi [°] | 110.0 |
| Wavelength [Å] | 0.88567 |
| Experiment Date | 2011-07-09 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
Dataset IDP05113-2c.### details
| Number of frames | 280 (1 - 280) |
| Distance [mm] | 110.0 |
| Oscillation width [°] | 0.30 |
| Phi [°] | 160.0 |
| Wavelength [Å] | 0.88567 |
| Experiment Date | 2011-07-09 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
Dataset IDP05113-2lr.### details
| Number of frames | 200 (1 - 200) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.75 |
| Phi [°] | 60.0 |
| Wavelength [Å] | 0.88567 |
| Experiment Date | 2011-07-09 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
