Diffraction project datasets IDP05074_5ISU
- Resolution: 2.2 Å
- Space group: P 1 21 1
Uniprot website for Q8YAJ0
PDB website for 5ISU
PDB validation report for 5ISU
doi:10.18430/m35isu
Project details

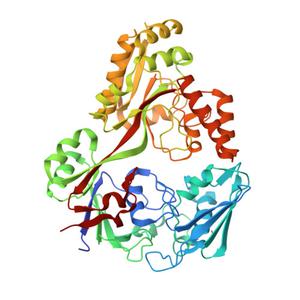

| Title | 2.2 Angstrom Crystal Structure of ABC Transporter Substrate Binding Protein CtaP (Lmo0135) from Listeria monocytogenes. |
| Authors | Minasov, G., Light, S.H., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.18 / 0.22 |
| Unit cell edges [Å] | 46.64 x 75.16 x 70.52 |
| Unit cell angles [°] | 90.0, 99.5, 90.0 |

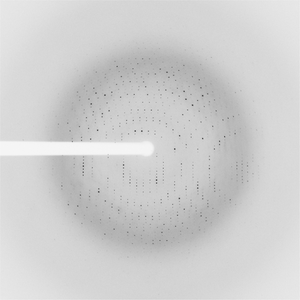

Dataset idp04088-2-sm-b_1_3_9.### details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 230.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 200.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2016-03-21 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |

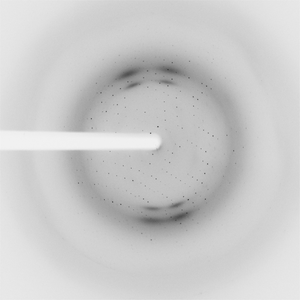

Dataset idp05074b_1_2_4.### details
| Number of frames | 23 (272 - 294) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 262.6 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2016-02-25 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
