Diffraction project datasets IDP04645_4ma5
- Resolution: 1.809 Å
- Space group: P 43 21 2
PDB website for 4MA5
PDB validation report for 4MA5
doi:10.18430/m34ma5
Project details

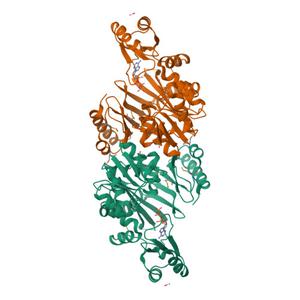

| Title | The crystal structure of phosphoribosylaminoimidazole carboxylase ATPase subunit of Francisella tularensis subsp. tularensis SCHU S4 in complex with an ATP analog, AMP-PNP. |
| Authors | Tan, K., Zhou, M., Kwon, K., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.22 |
| Unit cell edges [Å] | 84.94 x 84.94 x 106.54 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset IDP04645Acom_F2.####.img details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 256.7 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -100.0 |
| Wavelength [Å] | 0.97860 |
| Experiment Date | 2013-08-02 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
