Diffraction project datasets IDP04634_3msu
- Method: Molecular Replacement
- Resolution: 1.843 Å
- Space group: P 21 21 21
PDB website for 3MSU
PDB validation report for 3MSU
doi:10.18430/m33msu
Project details

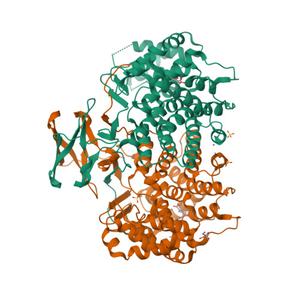

| Title | Crystal Structure of Citrate Synthase from Francisella tularensis |
| Authors | Maltseva, N., Kim, Y., Hasseman, J., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.16 / 0.20 |
| Unit cell edges [Å] | 75.40 x 76.38 x 154.14 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset ANL2D7sucr-peak.####.img details
| Number of frames | 220 (1 - 220) |
| Distance [mm] | 270.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -110.0 |
| Kappa / Chi [°] | 0.0001 |
| Phi [°] | -0.007 |
| Wavelength [Å] | 0.97951 |
| Experiment Date | 2010-02-25 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
