Diffraction project datasets IDP04524_3q58

  • Method: Molecular Replacement
  • Resolution: 1.8 Å
  • Space group: P 21 21 2
Download all images (3.1 GB)

PDB website for 3Q58

doi:10.18430/M33Q58

Project details

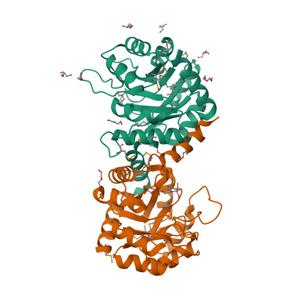

Title Structure of N-acetylmannosamine-6-Phosphate Epimerase from Salmonella enterica
Authors S.M.Anderson,Z.Wawrzak,M.Kudritska,K.Kwon,W.F.Anderson,A.Savchenko,Center For Structural Genomics Of Infectious Diseases (Csgid)
R / Rfree 0.17 / 0.21
Unit cell edges [Å] 81.15 x 139.31 x 38.42
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset IDP04524-3.### details

Number of frames 180 (1 - 180)
Distance [mm] 280.0
Oscillation width [°] 0.60
Phi [°] 180.0
Wavelength [Å] 0.77483
Experiment Date 2010-08-13
Equipment 21-ID-D at APS (Advanced Photon Source)

Dataset IDP04524-3a.### details

Number of frames 200 (1 - 200)
Distance [mm] 280.0
Oscillation width [°] 0.60
Phi [°] 288.0
Wavelength [Å] 0.77483
Experiment Date 2010-08-13
Equipment 21-ID-D at APS (Advanced Photon Source)
