Diffraction project datasets IDP04461_5v0g
- Resolution: 2.41 Å
- Space group: P 21 21 21
PDB website for 5V0G
doi:10.18430/M35V0G
Project details

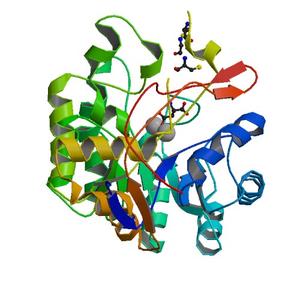

| Title | Crystal structure of dihydroorotase pyrC from Yersinia pestis in complex with zinc and unknown ligand at 2.4 A resolution. |
| Authors | Lipowska, J., Shabalin, I.G., Anderson, W.F., Minor, W. |
| R / Rfree | 0.16 / 0.20 |
| Unit cell edges [Å] | 95.84 x 112.20 x 208.26 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

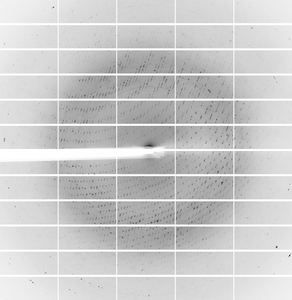

Dataset IDP04461_ZD2_10_1_#####.cbf details
| Number of frames | 219 (2 - 220) |
| Distance [mm] | 450.0 |
| Oscillation width [°] | 1.00 |
| Wavelength [Å] | 0.97926 |
| Experiment Date | 2016-11-12 |
| Equipment | 19-ID at APS (Advanced Photon Source) |

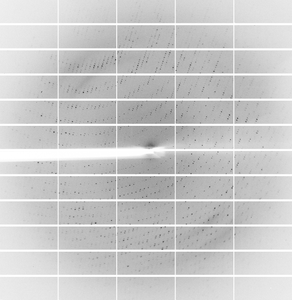

Dataset ZD2_10_2_9618keV_#####.cbf details
| Number of frames | 150 (1 - 150) |
| Distance [mm] | 450.0 |
| Oscillation width [°] | 1.00 |
| Wavelength [Å] | 1.28908 |
| Experiment Date | 2016-11-13 |
| Equipment | 19-ID at APS (Advanced Photon Source) |

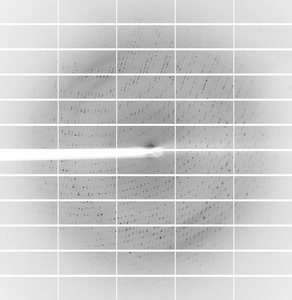

Dataset ZD2_10_2_9668eV_#####.cbf details
| Number of frames | 150 (1 - 150) |
| Distance [mm] | 400.0 |
| Oscillation width [°] | 1.00 |
| Wavelength [Å] | 1.28242 |
| Experiment Date | 2016-11-13 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
