Diffraction project datasets IDP04423_4RV4
- Resolution: 2.65 Å
- Space group: I 4 2 2
Uniprot website for Q81WF6
PDB website for 4RV4
PDB validation report for 4RV4
doi:10.18430/m34rv4
Project details
| Title | 2.65 Angstrom Resolution Crystal Structure of an orotate phosphoribosyltransferase from Bacillus anthracis str. 'Ames Ancestor' in complex with 5-phospho-alpha-D-ribosyl diphosphate (PRPP) |
| Authors | Halavaty, A.S., Minasov, G., Shuvalova, L., Winsor, J., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.20 / 0.24 |
| Unit cell edges [Å] | 133.27 x 133.27 x 151.35 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

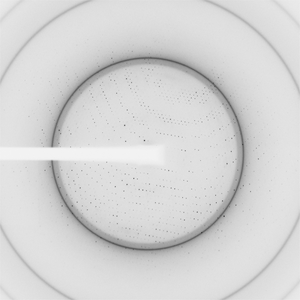

Dataset idp04423d-1.### details
| Number of frames | 160 (1 - 160) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 95.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2010-08-19 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
