Diffraction project datasets IDP04320_4ese
- Resolution: 1.45 Å
- Space group: C 2 2 21
PDB website for 4ESE
PDB validation report for 4ESE
doi:10.18430/m34ese
Project details

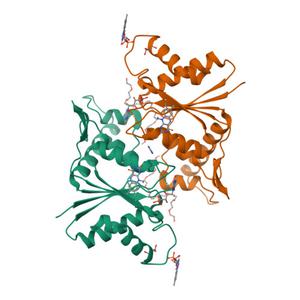

| Title | The crystal structure of azoreductase from Yersinia pestis CO92 in complex with FMN. |
| Authors | Tan, K., Gu, M., Kwon, K., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.20 |
| Unit cell edges [Å] | 51.83 x 120.39 x 60.07 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset IDP4320FMN3.####.img details
| Number of frames | 143 (1 - 143) |
| Distance [mm] | 161.7 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -80.0 |
| Kappa / Chi [°] | -0.0003 |
| Phi [°] | -0.0176 |
| Wavelength [Å] | 0.97934 |
| Experiment Date | 2012-04-09 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
Dataset IDP4320FMN4.####.img details
| Number of frames | 130 (1 - 130) |
| Distance [mm] | 161.7 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -80.0 |
| Kappa / Chi [°] | -0.0003 |
| Phi [°] | -0.0176 |
| Wavelength [Å] | 0.97934 |
| Experiment Date | 2012-04-09 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
