Diffraction project datasets IDP04248_4edp

  • Method: Molecular Replacement
  • Resolution: 1.85 Å
  • Space group: P 1 21 1
Download all images (3.7 GB)

PDB website for 4EDP

doi:10.18430/M34EDP

Project details

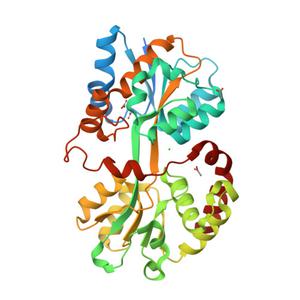

Title 1.85 Angstrom resolution crystal structure of an ABC transporter from Clostridium perfringens ATCC 13124
Authors Halavaty, A.S., Wawrzak, Z., Onopriyenko, O., Peterson, S.N., Anderson, W.F., Savchenko, A., Center for Structural Genomics of Infectious Diseases (CSGID)
R / Rfree 0.16 / 0.19
Unit cell edges [Å] 56.32 x 50.74 x 143.77
Unit cell angles [°] 90.0, 98.8, 90.0

Dataset IDP04248-1.### details

Number of frames 400 (1 - 400)
Distance [mm] 230.0
Oscillation width [°] 0.60
Phi [°] 80.0
Wavelength [nm] 0.97856
Experiment Date 2012-03-17
Equipment 21-ID-G at APS (Advanced Photon Source)

Dataset IDP04248-1b.### details

Number of frames 120 (1 - 120)
Distance [mm] 230.0
Oscillation width [°] 0.60
Phi [°] 250.0
Wavelength [nm] 0.97856
Experiment Date 2012-03-17
Equipment 21-ID-G at APS (Advanced Photon Source)
