Diffraction project datasets IDP04127_6cxd
- Resolution: 2.75 Å
- Space group: H 3 2
Uniprot website for P58475
PDB website for 6CXD
PDB validation report for 6CXD
doi:10.18430/m36cxd
Project details

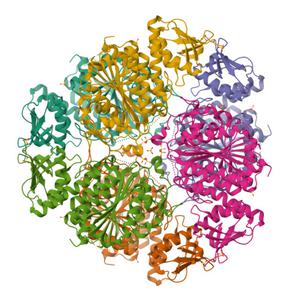

| Title | Crystal structure of peptidase B from Yersinia pestis CO92 at 2.75 A resolution |
| Authors | Woinska, M., Lipowska, J., Shabalin, I.G., Cymborowski, M., Grimshaw, S., Winsor, J., Shuvalova, L., Satchell, K.J., Joachimiak, A., Minor, W., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.18 / 0.25 |
| Unit cell edges [Å] | 101.56 x 101.56 x 240.48 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

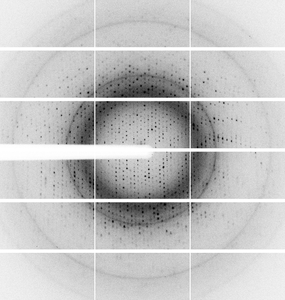

Dataset IDP07201-6_######.cbf details
| Number of frames | 1440 (1 - 1440) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.25 |
| Omega [°] | 1.0 |
| Wavelength [Å] | 1.07822 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |

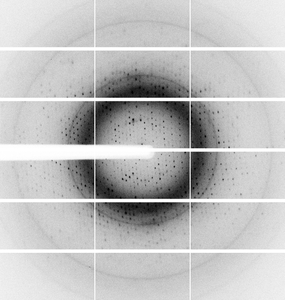

Dataset IDP07201-6b_######.cbf details
| Number of frames | 1440 (1 - 1440) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.25 |
| Omega [°] | 30.0 |
| Wavelength [Å] | 1.07822 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
