Diffraction project datasets IDP04072_3oow
- Method: SAD
- Resolution: 1.75 Å
- Space group: P 21 21 21
PDB website for 3OOW
PDB validation report for 3OOW
doi:10.18430/m33oow
Project details

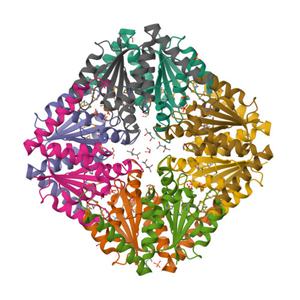

| Title | Octameric structure of the phosphoribosylaminoimidazole carboxylase catalytic subunit from Francisella tularensis subsp. tularensis SCHU S4. |
| Authors | Filippova, E.V., Wawrzak, Z., Kudritska, M., Edwards, A., Savchenko, A., Anderson, F.W., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.21 |
| Unit cell edges [Å] | 88.56 x 96.30 x 128.62 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset IDP04072-3.### details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.50 |
| Wavelength [Å] | 0.75145 |
| Experiment Date | 2010-08-12 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
Dataset IDP04072-3_2.### details
| Number of frames | 170 (1 - 170) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 100.0 |
| Wavelength [Å] | 0.75145 |
| Experiment Date | 2010-08-12 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
