Diffraction project datasets IDP02729_3ss6

  • Method: Molecular Replacement
  • Resolution: 1.7 Å
  • Space group: P 31 2 1
Download all images (4.4 GB)

PDB website for 3SS6

doi:10.18430/M33SS6

Project details

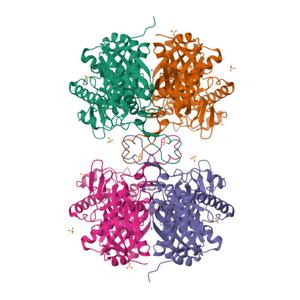

Title Crystal structure of the Bacillus anthracis acetyl-CoA acetyltransferase
Authors Anderson, S.M., Wawrzak, Z., Onopriyenko, O., Peterson, S.N., Anderson, W.F., Savchenko, A., Center for Structural Genomics of Infectious Diseases (CSGID)
R / Rfree 0.15 / 0.18
Unit cell edges [Å] 94.72 x 94.72 x 189.26
Unit cell angles [°] 90.0, 90.0, 120.0

Dataset IDP02729-1.### details

Number of frames 200 (1 - 200)
Distance [mm] 210.0
Oscillation width [°] 0.75
Wavelength [nm] 0.97856
Experiment Date 2011-03-21
Equipment 21-ID-G at APS (Advanced Photon Source)

Dataset IDP02729-1b.### details

Number of frames 200 (1 - 200)
Distance [mm] 210.0
Oscillation width [°] 0.75
Phi [°] 40.0
Wavelength [nm] 0.97856
Experiment Date 2011-03-21
Equipment 21-ID-G at APS (Advanced Photon Source)

Dataset IDP02729-2.### details

Number of frames 200 (1 - 200)
Distance [mm] 200.0
Oscillation width [°] 0.75
Wavelength [nm] 0.97856
Experiment Date 2011-03-21
Equipment 21-ID-G at APS (Advanced Photon Source)
