Diffraction project datasets IDP02717_5KZ6
- Resolution: 1.252 Å
- Space group: C 2 2 21
Uniprot website for Q81WW1
PDB website for 5KZ6
PDB validation report for 5KZ6
doi:10.18430/m35kz6
Project details
| Title | 1.25 Angstrom Crystal Structure of Chitinase from Bacillus anthracis. |
| Authors | Minasov, G., Shuvalova, L., Kiryukhina, O., Dubrovska, I., Grimshaw, S., Kwon, K., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.12 / 0.14 |
| Unit cell edges [Å] | 55.24 x 94.15 x 243.57 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

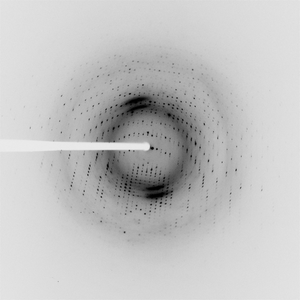

Dataset IDP95705-1.### details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 180.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | -10.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2016-07-06 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |

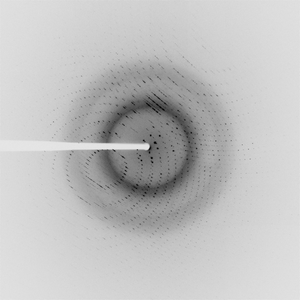

Dataset idp02717-2cut-a_1_2_1.### details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 150.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | -100.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2016-06-21 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
