Diffraction project datasets IDP02613_5EQV
- Resolution: 1.45 Å
- Space group: P 43 21 2
Uniprot website for A0A0B6NVJ4
PDB website for 5EQV
PDB validation report for 5EQV
doi:10.18430/m35eqv
Project details

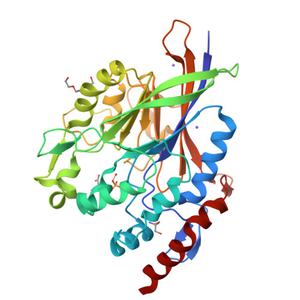

| Title | 1.45 Angstrom Crystal Structure of Bifunctional 2',3'-cyclic Nucleotide 2'-phosphodiesterase/3'-Nucleotidase Periplasmic Precursor Protein from Yersinia pestis with Phosphate bound to the Active site |
| Authors | Minasov, G., Shuvalova, L., Brunzelle, J.S., Kiryukhina, O., Dubrovska, I., Grimshaw, S., Kwon, K., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.13 / 0.15 |
| Unit cell edges [Å] | 107.28 x 107.28 x 63.36 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

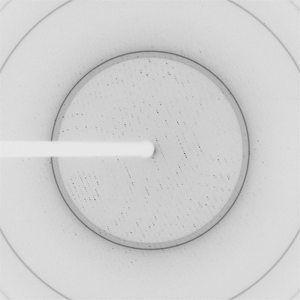

Dataset idp00699wt-a.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 270.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 20.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2015-06-29 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
