Diffraction project datasets IDP02573_3icc
- Method: SAD
- Resolution: 1.87 Å
- Space group: C 2 2 21
PDB website for 3ICC
PDB validation report for 3ICC
doi:10.18430/M33ICC
Project details

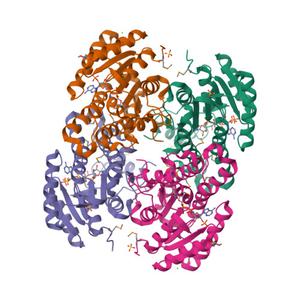

| Title | Crystal structure of a putative 3-oxoacyl-(acyl carrier protein) reductase from Bacillus anthracis at 1.87 A resolution |
| Authors | Hou, J., Chruszcz, M., Zheng, H., Cymborowski, M., Luo, H.-B., Skarina, T., Gordon, S., Savchenko, A., Edwards, A.M., Anderson, W., Minor, W., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.21 |
| Unit cell edges [Å] | 98.73 x 104.84 x 103.68 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset IDP02573_crystal2_1_####.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 270.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -60.0 |
| Kappa / Chi [°] | 0.0003 |
| Wavelength [Å] | 0.97934 |
| Experiment Date | 2009-06-14 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
