Diffraction project datasets IDP02545_3p09
- Method: SAD
- Resolution: 1.898 Å
- Space group: P 21 21 2
PDB website for 3P09
PDB validation report for 3P09
doi:10.18430/m33p09
Project details

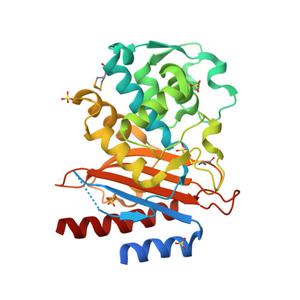

| Title | Crystal Structure of Beta-Lactamase from Francisella tularensis |
| Authors | Kim, Y., Makowska-Grzyska, M., Hasseman, J., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.16 / 0.21 |
| Unit cell edges [Å] | 77.65 x 143.47 x 46.89 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset ig3g-peak.####.img details
| Number of frames | 420 (1 - 420) |
| Distance [mm] | 290.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -100.0 |
| Kappa / Chi [°] | 0.0003 |
| Phi [°] | -0.0108 |
| Wavelength [Å] | 0.97921 |
| Experiment Date | 2010-08-11 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
