Diffraction project datasets IDP02525_4nf2
- Method: Molecular Replacement
- Resolution: 1.74 Å
- Space group: P 21 21 21
PDB website for 4NF2
PDB validation report for 4NF2
doi:10.18430/m34nf2
Project details

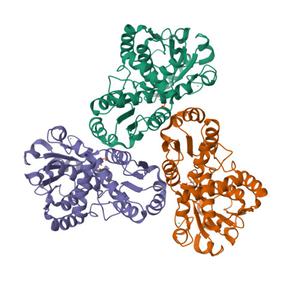

| Title | Crystal structure of anabolic ornithine carbamoyltransferase from Bacillus anthracis in complex with carbamoyl phosphate and L-norvaline |
| Authors | Shabalin, I.G., Handing, K., Cymborowski, M.T., Stam, J., Winsor, J., Shuvalova, L., Anderson, W.F., Minor, W., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.15 / 0.17 |
| Unit cell edges [Å] | 85.89 x 99.89 x 118.99 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset Is20_3_set.### details
| Number of frames | 154 (1 - 154) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -80.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2012-06-25 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
