Diffraction project datasets IDP02508_5hx7
- Resolution: 1.75 Å
- Space group: P 21 21 21
PDB website for 5HX7
PDB validation report for 5HX7
doi:10.18430/m35hx7
Project details

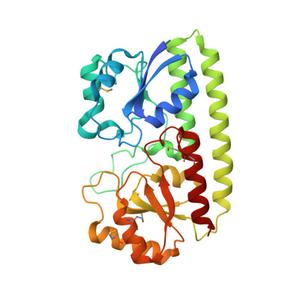

| Title | Metal ABC transporter from Listeria monocytogenes |
| Authors | Osipiuk, J., Zhou, M., Grimshaw, S., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.20 |
| Unit cell edges [Å] | 65.60 x 66.65 x 67.78 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset u1_01.####.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 256.5 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -45.0 |
| Wavelength [Å] | 0.97928 |
| Experiment Date | 2015-12-18 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
