Diffraction project datasets IDP02500_3tj7
- Method: Molecular Replacement
- Resolution: 2.1 Å
- Space group: P 1 21 1
PDB website for 3TJ7
doi:10.18430/M33TJ7
Project details

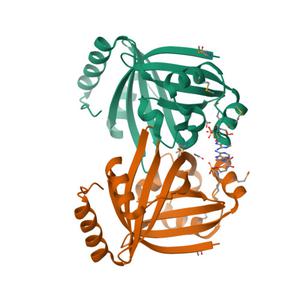

| Title | GBAA_1210 protein, a putative adenylate cyclase, from Bacillus anthracis in complex with AMP |
| Authors | Osipiuk, J., Gu, M., Kwon, K., Anderson, W.F., Joachimiak, A. |
| R / Rfree | 0.19 / 0.25 |
| Unit cell edges [Å] | 67.23 x 86.32 x 76.44 |
| Unit cell angles [°] | 90.0, 102.0, 90.0 |
Dataset idp02500_3TJ7.####.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 327.1 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -120.0 |
| Kappa / Chi [°] | 0.0001 |
| Phi [°] | -0.0108 |
| Wavelength [Å] | 0.97934 |
| Experiment Date | 2011-07-24 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
